Name: Durable Quality Heavy Duty Floor Block Making Machine QT10-15
Availability: InStock

Durable Quality Heavy Duty Floor Block Making Machine QT10-15

Reference video of HD10-15 floor block making machine

The QT10-15 floor block making machine offers an optional servo frequency modulation drive control system. This advanced feature ensures rapid vibration start, significantly reducing non-productive time. The servo-driven system enables a shorter molding cycle while maintaining superior precision. Control accuracy is enhanced, allowing consistent block density and shape. Energy efficiency is improved due to smart power management.

Production Data

Block Type	Specification（mm）	Qty/Pallet	Qty/Hour	Qty/8 Hours
Hollow Block	400200200	10	1980	15840
Solid Block	24011553	51	14784	118278
Holland Paver	20010060	35	6930	55440
Zigzag Paver	225112.560	30	5940	47520

Product Detail

The long guide sleeves on the QT10-15 enhance stability and balance during block production. The guiding bush features a unique raise-and-lower function that significantly reduces friction and wear. This design minimizes metal-to-metal contact, extending the service life of critical components. Operators benefit from smoother machine cycles, less downtime for maintenance, and consistent product quality over extended production runs.
The QT10-15 features wear-resistant strips designed for quick and tool-free replacement. Unlike integral cast steel, which requires costly and time-intensive full-part changes, these modular strips can be swapped individually, reducing downtime significantly. Daily inspection and maintenance become straightforward, as worn sections are easily accessible. This design extends the machine’s core lifespan and lowers long-term upkeep costs.

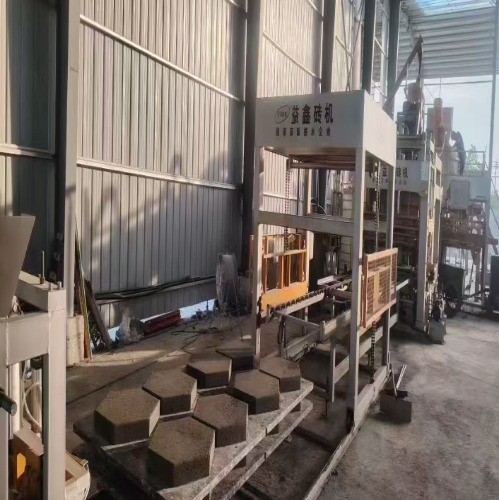

The block conveyor of the QT10-15 efficiently transports finished blocks from the block making machine to the next production stage. It features a heavy-duty belt and robust frame for long-lasting, reliable operation even under continuous use. The conveyor ensures smooth, gentle handling to prevent edge chipping or cracking. Its adjustable speed and height accommodate different block sizes and pallet-free stacking needs

Block Type

The stirring teeth of the QT10-15 are strategically arranged in rows, ensuring efficient material distribution across the mixing chamber. This design accelerates the feeding process into the mold, reducing cycle time without compromising consistency. Each row works to guide raw material smoothly toward the mold cavity, preventing clogs or uneven spread. As a result, block production becomes faster and more uniform, enhancing overall output for heavy-duty operations.

Exhibition Experience

The pressure head cylinder on the QT10-15 precisely manages the lifting and lowering of the pressure head. It works in sync with the vibration table to apply controlled pressure, ensuring even compaction of raw materials. This coordinated action produces dense, uniform bricks with high structural integrity. The system enhances forming efficiency, reduces cycle time, and delivers consistent output quality, making it ideal for heavy-duty production environments where durability and precision are essential.

FAQ

1.What types of products can be produced using Yixin Machinery Factory Wholesale Durable Quality Heavy Duty Floor Block Making Machine QT10-15?

Yixin Machinery Factory Wholesale Durable Quality Heavy Duty Floor Block Making Machine QT10-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.

2. What is the production capacity of the Durable Quality Heavy Duty Floor Block Making Machine QT10-15?

This machine can produce up to 1980 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs.

3.What are the raw materials used in the production process of Yixin MachineryDurable Quality Heavy Duty Floor Block Making Machine QT10-15, and can it incorporate industrial waste materials?

The raw materials utilized in the production process of Yixin Machinery Durable Quality Heavy Duty Floor Block Making Machine QT10-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What are the payment terms?

The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods.

5. How automated is the system? Do I need a lot of skilled workers to operate it?

The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training.
