Name: Fully Automatic Concrete Block Making Machine QT15-15
Availability: InStock

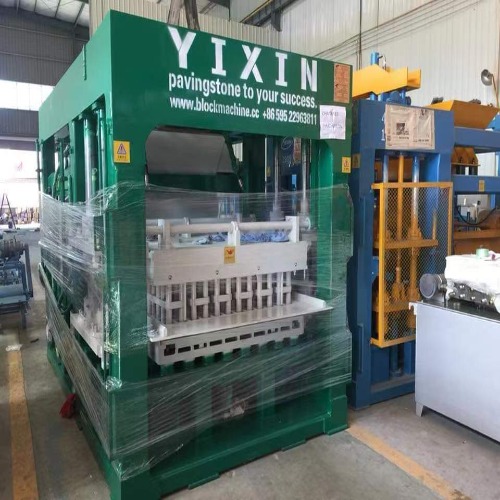

Fully Automatic Concrete Block Making Machine QT15-15

Reference video of QT15-15 concrete block making machine

The QT15-15 operates with full automation for high-efficiency block production. It features a powerful vibration system and hydraulic press, ensuring superior block density and strength. The machine supports various molds, producing solid/hollow blocks, pavers, and curbstones. A PLC control system allows precise cycle management and easy parameter adjustment.

Production Data

Block Type	Specification（mm）	Qty/Palllet	Qty/Hour	Qty/Hours
Hollow Block	400200200	15	2700	20000-23000
Solid Block	24011553	84	20160	120000-140000
Holland Block	20010060	55	9900	79200
Zigzag Block	225112.560	40	7200	57600

Product Detail

The QT15-15 features an imported high-effect hydraulic proportional system made of pure components. This advanced system ensures superior efficiency and significant energy conservation. It delivers precise hydraulic control, enabling faster cycle times and consistent block density. The pure component design enhances system reliability, reduces maintenance needs, and extends service life.
The arch breaking type rapid feeding device on the QT15-15 ensures superior material flow for multi-hole brick production. By actively preventing bridging and material clogging, it delivers fast, uniform mold filling. This design significantly improves distribution consistency into complex cavities, directly enhancing brick density and structural integrity. The result is higher quality multi-hole bricks with reduced waste, increased production efficiency, and lower maintenance needs compared to standard systems.

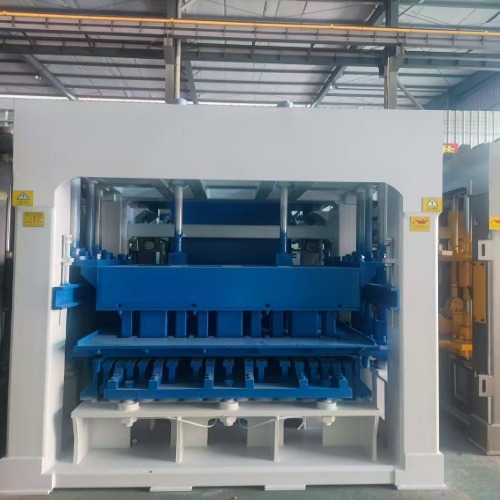

The QT15-15 with advanced vibrotechnique significantly accelerates forming cycles while enhancing block compactedness. Its high-frequency, servo-driven vibration system ensures uniform consolidation from core to surface, reducing cement usage without compromising strength. The extendable design supports rapid mould changes and uninterrupted production. Real-time density feedback adjusts vibration parameters automatically, eliminating over- or under-compaction.

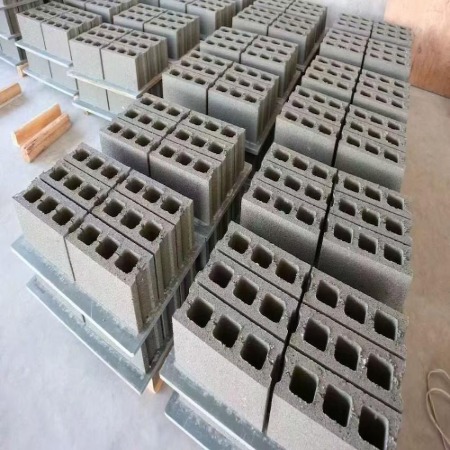

Block Display

The QT15-15 fully automatic concrete block making machine can be equipped with an optional second materials device, enabling the production of all types of color paving blocks. This attachment allows layering or mixing two different concrete mixes, creating vibrant surface colors while maintaining structural strength.

Customers Access

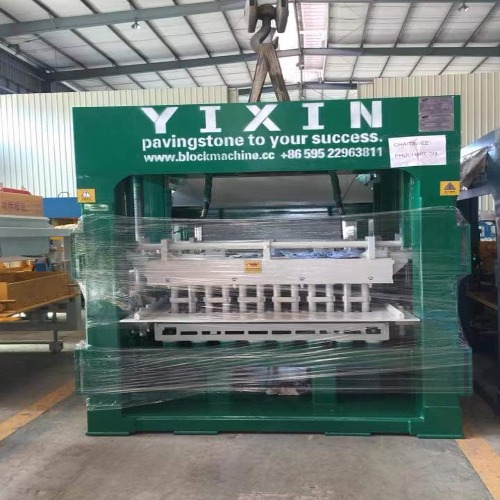

The QT15-15 fully automatic concrete block making machine features a high-heat treatment special technology applied to its molds. This advanced process significantly enhances the mold’s surface hardness and structural integrity, making it exceptionally durable and firm. As a result, the molds resist wear, deformation, and cracking even under continuous, high-pressure production.

FAQ

1.How long does the product production cycle typically take?

Fully Automatic Concrete Block Making Machine QT15-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.

2. How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil.

3.What are the raw materials used in the production process of Yixin Machinery Fully Automatic Concrete Block Making Machine QT15-15?

The raw materials utilized in the production process of Fully Automatic Concrete Block Making Machine QT15-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What is the estimated date of shipment for the Fully Automatic Concrete Block Making Machine QT15-15 after mold confirmation?

The estimated date of shipment for the Fully Automatic Concrete Block Making Machine QT15-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications.

5. Can the Fully Automatic Concrete Block Making Machine QT15-15 be equipped with an additional device to produce various types of colored paving blocks?

Yes, the Fully Automatic Concrete Block Making Machine QT15-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks.
