Name: Professional Service Premium Quality Offline Packing Block System YX-MD1200
Availability: InStock

Professional Service Premium Quality Offline Packing Block System YX-MD1200

Reference video of offline packing block making machine

The YX-MD120 offline packing block system features a fully automatic brick stacking machine that serves as key equipment for automated stacking of finished bricks and tiles in the production line. This intelligent system efficiently arranges and stacks finished products without manual handling. It receives blocks from the curing or conveyor system, organizes them into ordered stacks, and prepares them for storage or shipment. The automatic stacker reduces labor costs, eliminates repetitive lifting injuries, and increases packing speed. Its precise operation ensures stable, well-aligned stacks suitable for secure transport and efficient warehouse management.

Tech Data

Power	29.5（KW）
Max Cuber Size	1200120014500（MM）
Cycle Time	15（S）
Weigh	11（T）
Suitable Pallet Size	QT4-QT18

Product Detail

The YX-MD120 offline packing block system is located at the end of the production line, where it automatically stacks shaped and cured bricks into neat stacks according to a set pattern. This intelligent system organizes finished blocks systematically, creating stable and uniform stacks ready for subsequent packaging, transportation, and storage. The automatic stacking process eliminates manual handling, reduces labor costs, and prevents product damage. Each stack follows precise arrangements that optimize space usage during warehousing and ensure secure transport. This end-of-line solution significantly improves workflow efficiency and final product presentation for brick manufacturing facilities.
The YX-MD120 offline packing block system features an advanced gripping and holding system with fingers that make direct contact with the bricks. These fingers are driven by independent cylinders, providing precise and gentle handling. Changing the grippers allows the system to accommodate various brick types, including standard bricks, hollow blocks, and paving bricks. This flexible design ensures secure gripping without damaging product surfaces. The independently controlled fingers adapt to different shapes and sizes, making the system highly versatile for diverse production lines. Quick gripper changeovers minimize downtime and maximize packing efficiency for multiple product runs.
The YX-MD120 offline packing block system includes a conveying and sorting system designed for efficient material flow. This system features a conveyor belt that arranges bricks into specific patterns for organized processing. It also incorporates a supply line for empty pallets to be stacked and delivered automatically. The conveying mechanism moves finished blocks smoothly between production stages while maintaining proper orientation and spacing. The sorting function separates blocks by size or type as needed. Integrated pallet management ensures a continuous supply of fresh pallets, reducing downtime and enabling seamless offline packing operations.

Product Display

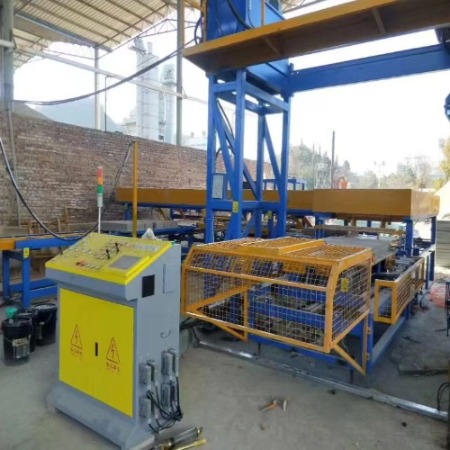

The YX-MD120 offline packing block system is a semi-automatic palletizing production line designed for simple block production lines. It is typically installed independently near the product maintenance yard. This system handles product stacking efficiently while requiring moderate operator involvement. It receives cured blocks from the yard, organizes them into stable stacks, and prepares them for storage or transport. The layout flexibility allows integration with existing facilities without major modifications. Ideal for smaller operations or as a dedicated packing station, this system improves workflow, reduces manual stacking labor, and enhances overall productivity in block manufacturing facilities.

Customer Access

The YX-MD120 offline packing block system offers flexible palletizing options for cured products. It performs on-site palletizing directly at the curing area, allowing efficient handling without moving products far. The system can also connect seamlessly to the main block production line for online palletizing, integrating stacking into the continuous workflow. This dual-mode flexibility lets operators choose between standalone or inline operation based on factory layout and production needs. The automatic palletizer maintains stable, uniform stacks whether used offline or online, reducing manual labor and improving material flow efficiency.

FAQ

1.Is it difficult to operate? Do I need highly skilled workers?

Not at all. The system is equipped with a user-friendly touchscreen HMI. Most operators become comfortable with it after a few hours of training. The PLC handles all the sequence logic, and there are diagnostic displays to help quickly identify any issues.

2.Can it integrate with my existing batching and curing systems?

Yes, integration is one of its strengths. The system works with standard forklift or conveyor infeed from the curing area. It can also be linked to your plant’s central control system via Ethernet or industrial communication protocols if you want centralized monitoring.

3. What does “fully set offline packing” mean in practical terms?

It means the system operates independently from the main production line. The blocks are first fully cured (set) in the yard or curing area, then fed into the packing line. This allows your main block machine to keep running without interruption, and packing can be done at a separate pace, which improves overall efficiency.

4.What kind of training do you provide?

We provide our installation engineer provides on-site training for your operators and maintenance staff for 7 to 10 days during commissioning. This covers mix design optimization for fly ash, daily maintenance, and troubleshooting.

5.can I trust the quatity of the machine?

Our products have passed the ISO 9001-2000 and CE certification. We have 20 years of history in manufacturing machines, with rich experience, updated technical ideas and applications.
