Name: Aggregate Concrete Batching Machine Plant Model PL 1200
Availability: InStock

Aggregate Concrete Batching Machine Plant Model PL 1200

Reference video of Aggregate Concrete Batching Machine Plant Model PL 1200:

This reference video showcases the PL 1200, a high-capacity aggregate concrete batching plant engineered for accurate weighing and feeding of aggregates and cement. Featuring multiple aggregate bins (2, 3, or 4 bins), a heavy-duty skip hoist, and precision load cells, it achieves ±2% batching accuracy for consistent mix quality. With a 1200-liter batch capacity per cycle, it efficiently supplies material for high-volume block production lines and concrete mixing plants. The PLC automatic control allows easy adjustment of mix proportions and real-time production monitoring. Watch the video to see the PL 1200 deliver reliability, accuracy, and efficiency.

Tech Data

Type	PL800	PL1200	PL1600-3	PL1600-4
Volume of Weigh Hopper	2m³*2	4m³*3	7m³*3	7m³*4
Wolume of Unloading Hopper （m³）	0.8	1.2	1.6	1.6
Productivity（m³）	48	72	96	96
Maximum Magnitude	1.5T	2T	3T	4T

Product Detail

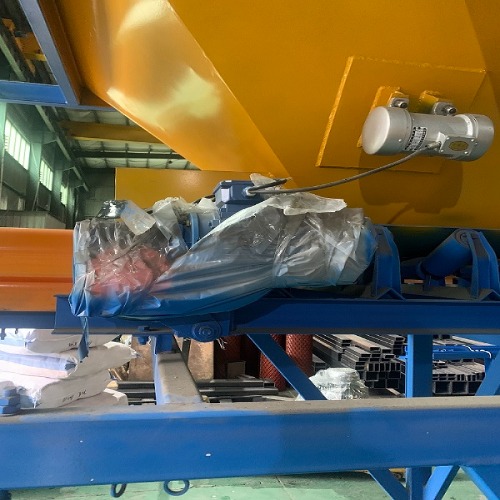

This highlights the high-performance motors powering the PL 1200 batching plant. Each motor is engineered for reliable, energy-efficient operation under continuous heavy loads. The skip hoist motor delivers powerful lifting torque, while vibration motors on each aggregate bin prevent material bridging and ensure smooth flow. Gear motors drive the screw conveyors for precise cement feeding.Backed by global brand components (Siemens, WEG, or equivalent), these robust motors ensure long service life, reduced downtime, and consistent batching accuracy.

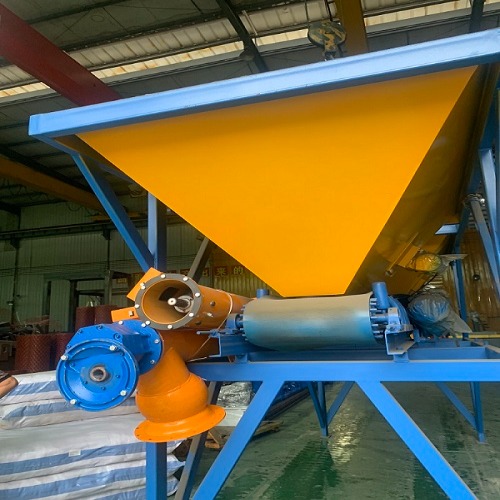

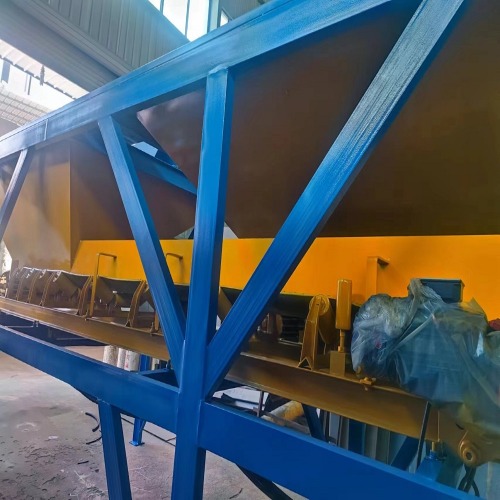

The PL 1200 batching plant features a heavy-duty conveyor belt system for efficient transfer of aggregates from storage bins to the weighing hopper. Constructed with multi-ply rubber belting and vulcanized seamless joints, it offers excellent tensile strength, wear resistance, and flexibility for continuous operation. An adjustable belt tensioning system ensures proper tracking and extends belt life. Powered by a gear motor with overload protection, this reliable conveyor belt delivers smooth, consistent material flow—essential for accurate batching and high-efficiency concrete production.
The PL 1200 batching plant is paired with a heavy-duty cement silo designed for efficient storage and discharge of cement and fly ash. Constructed from thick-gauge steel plates with anti-rust coating, the silo offers capacities from 30 to 100 tons to suit various production scales. The screw conveyor transfers cement smoothly to the weighing hopper with precise control. Emergency shut-off and ladder with safety cage ensure operator safety. This durable cement silo guarantees reliable material supply, accurate batching, and clean operation for concrete production.

Block Display

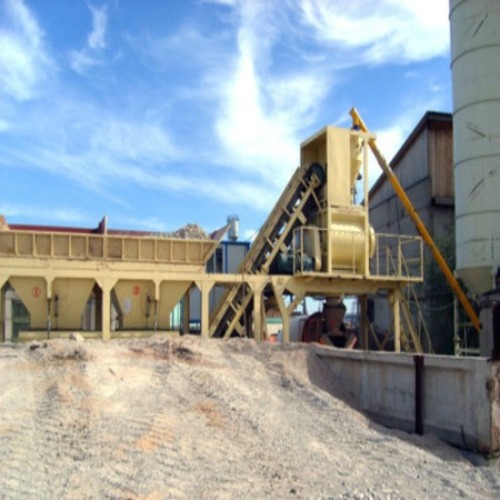

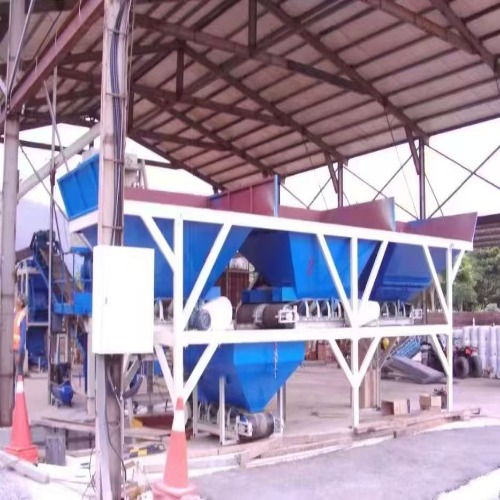

The PL 1200 product display showcases the complete batching plant's components and capabilities. Featured prominently are the aggregate storage bins, precision weighing hopper, skip hoist, cement silo, screw conveyor, conveyor belt, control panel, and discharge system—each exhibiting robust construction and thoughtful engineering. The display highlights the load cells, vibration motors, and PLC automation that ensure accurate batching. Also shown are sample concrete blocks, pavers, and hollow bricks produced using PL 1200-batched materials, demonstrating superior quality and consistency. This comprehensive display illustrates how the PL 1200 integrates seamlessly into concrete production lines, delivering reliability, accuracy, and high efficiency.

Product Display

FAQ

1. What is the PL Series mainly used for?

It is used for automatic batching of sand, stone, and other aggregates in concrete production. It works well with mixers like JS series.

2.Is it easy to operate?

Yes, it has a user-friendly control system. Operators can easily set formulas and monitor the process with clear displays.

3.How easy is maintenance?

The PL 800 features accessible components, wear-resistant liners, and easy-to-clean hoppers for simple routine maintenance.

4.Does it have a vibration system?

Yes. The vibration motor prevents material bridging and ensures smooth flow from bins, especially for moist or fine aggregates.

5.What about power consumption?

Efficiency isn’t just about speed for us; it’s also about energy costs per cubic meter.That’s a key metric. The high efficiency here directly reduces energy costs. We use premium-efficiency motors on the mixer and the belts. More importantly, the mixer operates with an optimal filling ratio. Because the mixing cycle is shorter than standard plants, you produce more cubic meters per kilowatt-hour. Customers typically report a 15 to 20 percent reduction in energy consumption per cubic meter compared to their older volumetric or free-fall plants.
