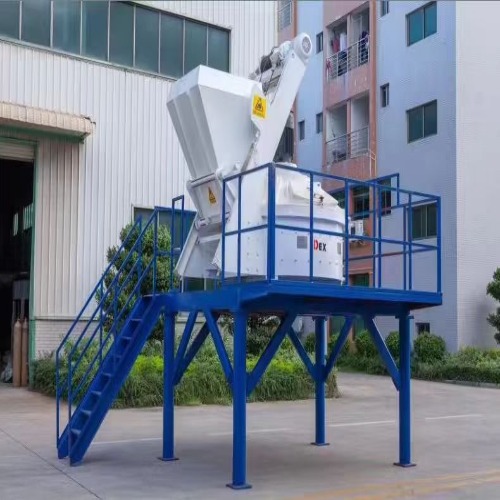

The High Quality MP Series Planetary Precast Concrete Mixer ensures uniform mixing of dry, semi-dry, and wet concrete. Its planetary action creates intense multi-directional motion, eliminating material dead zones. Ideal for precast elements, it handles low water-to-cement ratios efficiently. Robust construction guarantees durability and low maintenance. Fast discharge and easy cleaning boost productivity. Suitable for concrete pipe, block, and railway sleeper production, providing consistent, high-strength results for demanding precast operations.
Модель :
Yixin Machinery MP Series Planetary Precast Concrete MixerУпаковка :
FilmРежим транзакции :
TT or 100%LCМинимальный объем заказа :
1 SetЦвет :
white and blueПорт слива: :
Xiamen PortМатериаловедение :
Q235 Steel ,handox steelHigh Quality MP Series Planetary Precast Concrete Mixer
Reference video of MP Series Planetary Precast Concrete Mixer
The MP Series planetary mixer ensures superior homogenization for high-viscosity and high-solids materials. Its multi-paddle planetary action delivers intensive shearing and rapid dispersion, eliminating dead zones. Ideal for precast concrete, the mixer guarantees consistent batch quality, reduced mixing time, and enhanced material fluidity. Durable construction supports heavy loads, while low maintenance design boosts productivity. Perfect for fine mortars, UHPC, and refractory castables requiring extreme uniformity.
Tech Data
| Type | MP330 | MP550 | MP750 | MP1000 |
| Charging Volume（L） | 500 | 750 | 1125 | 1500 |
| Discharging Volume（KG） | 800 | 1200 | 1800 | 2400 |
| Discharging Volume（L） | 330 | 500 | 750 | 1000 |
| Mixing Blade（PCS） | 1*2 | 1*2 | 1*3 | 2*2 |
| Power of Mixing Motor（KW） | 15 | 18.5 | 30 | 37 |
Product Detail
Block Display

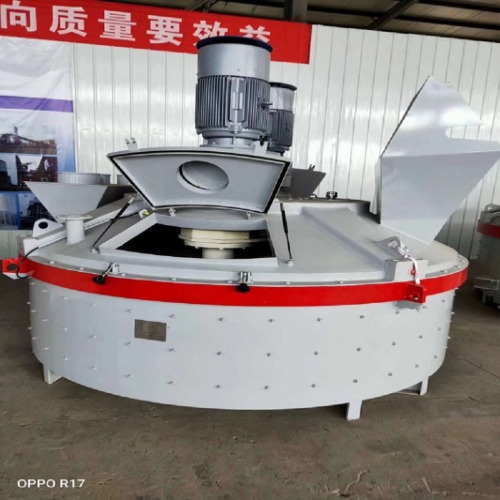

The High Quality MP Series Planetary Precast Concrete Mixer integrates two or three low-speed stirring paddles with a high-speed dispersing disc. The low-speed paddles, available in frame or twisted designs, ensure thorough mass mixing and material turnover. Simultaneously, the high-speed dispersing disc rapidly breaks down agglomerates and disperses fine particles.
Exhibition Experience
The High Quality MP Series Planetary Precast Concrete Mixer features a uniquely designed wall-scraping paddle that stays in constant contact with the inner wall of the container. As the mixer operates, this paddle continuously removes material from the edges and prevents any accumulation or adhesion. This design ensures that even materials at the periphery are fully incorporated into the mixing process.
| FAQ |
| 1. What is the maximum output capacity per batch for this MP Series mixer??
The MP Series is available in several models. Batch capacities range from 500 liters to 1,500 liters per cycle, depending on the exact model. For example, the MP-750 produces 1125 liters of compacted concrete per batch. We can help you select the right size based on your precast production schedule and mold cycle time. |
|
2. How consistent is the mix quality from one batch to the next??
Consistency is one of the main advantages. The planetary action, combined with high-quality wear-resistant liners and precisely spaced mixing tools, achieves a coefficient of variation below 3% in most precast recipes. |
| 3. What kind of concrete can this mixer handle? Only dry cast, or also wet cast and zero-slump??
The MP Series is designed for versatility. It handles dry cast, zero-slump concrete, semi-dry mixes, and wet cast concrete very well. For zero-slump applications like block making, the planetary mixer provides excellent energy transfer to break down agglomerates. For wet precast, it mixes quickly without segregating the aggregates. Many customers use the same MP mixer for multiple product lines. |
| 4. Can it be integrated into an existing automated precast production line?
Yes. The MP Series has standard connection points for automated batching systems, water addition control, and discharge actuators. It supports PLC communication protocols such as Profibus, Modbus, and Ethernet/IP. Many customers retrofit the MP mixer into existing lines. |
| 5.How energy efficient is this mixer compared to other planetary mixers on the market?？
The MP Series is optimized for energy efficiency. The motor power is matched precisely to the mixing pan size and planetary drive ratio. For a typical 750-liter batch of semi-dry precast concrete, power consumption ranges from 11 to 15 kWh per cubic meter of output. This is about 15 to 20 percent lower than older planetary designs, thanks to reduced friction in the planetary transmission and improved mixing geometry. |
